V-Grooving

Description

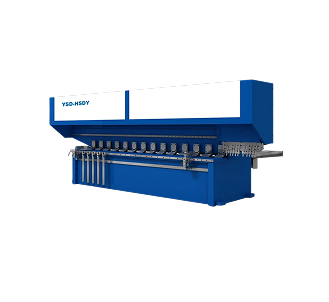

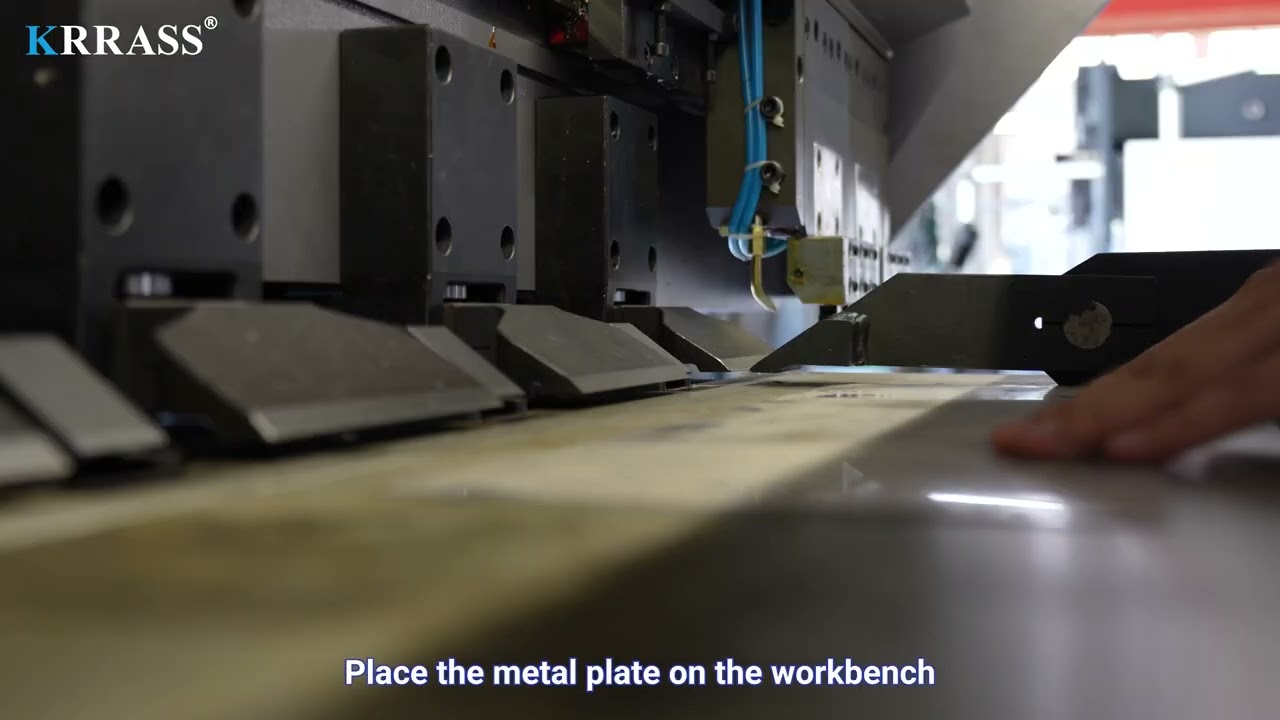

CNC V-Grooving Machine

( Y1、Y2、X、Z axes)

Y1 axis

The Y1-Y2 axis is the tool head control axis, which is controlled by high-precision servo motor and has the characteristics of high precision and fast speed.

Positioning precision: ±0.02mm

Repeated positioning accuracy: ±0.02mm

Speed: 300mm/s

X axis

 X axis is the tool head travel control axis, using double linear guide rail, precision rack and pinion as the mode, fast speed, strong force, adjustable travel speed.

Speed adjustable range: 1–200m/min

Z axis

 Z axis for the rear tube position control axis using servo motor, imported aluminum tee overall control, high precision, good stability.

Positioning precision: ±0.02m

Repeated positioning accuracy: ±0.02mm

Control System

 Taiwan SYNTEC

System Features

2D graphics programming

1. Generate grooving path while drawing, easy to use
2. No need to program the drawing
