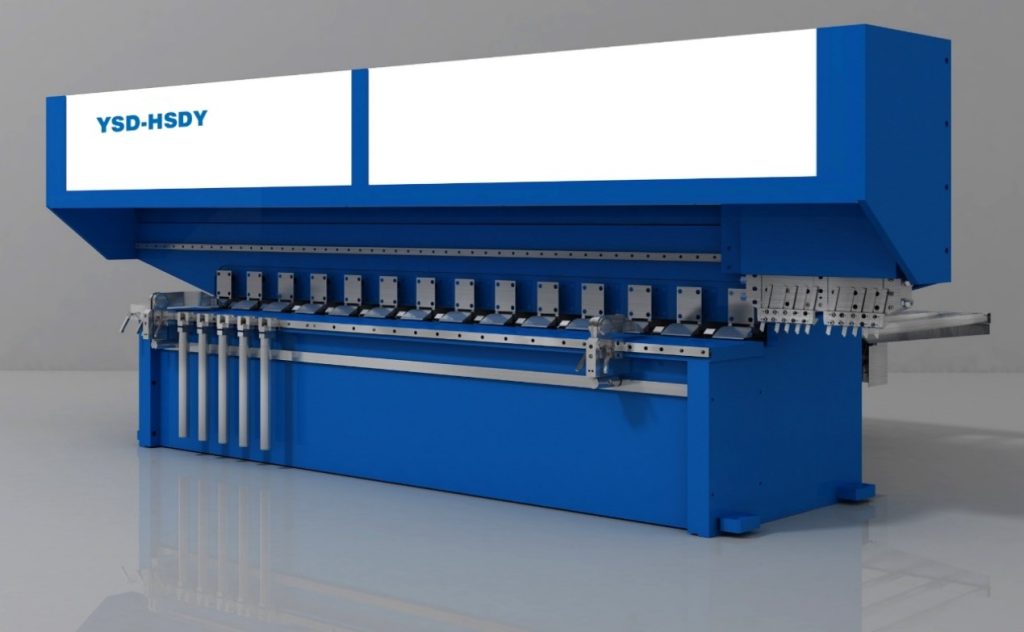

CNC V-Grooving Machine
( Y1、Y2、X、Z axes)

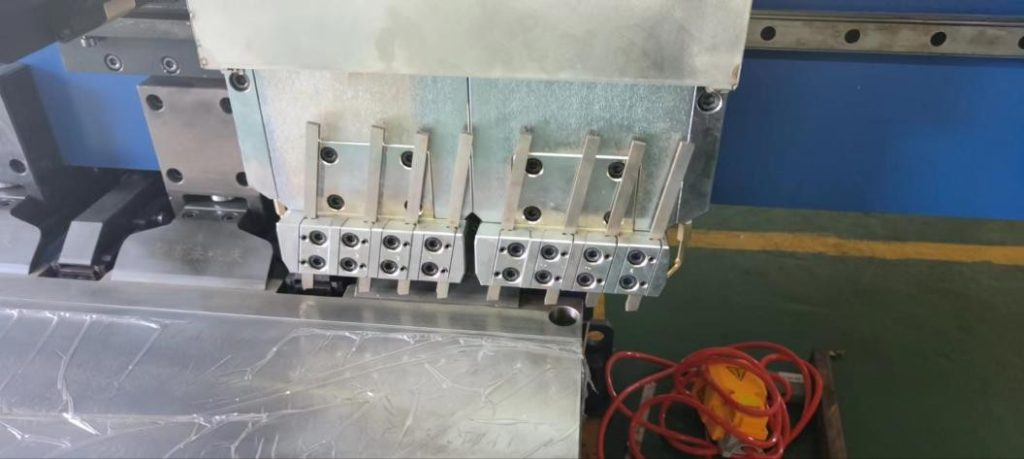

Y1 axis
The Y1-Y2 axis is the tool head control axis, which is controlled by high-precision servo motor and has the characteristics of high precision and fast speed.
Positioning precision: ±0.02mm
Repeated positioning accuracy: ±0.02mm
Speed: 300mm/s
X axis
X axis is the tool head travel control axis, using double linear guide rail, precision rack and pinion as the mode, fast speed, strong force, adjustable travel speed.
Speed adjustable range: 1–200m/min
Z axis

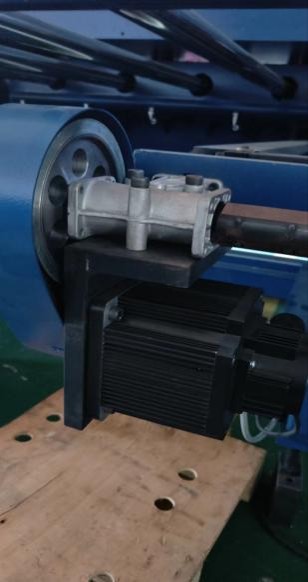

Z axis for the rear tube position control axis using servo motor, imported aluminum tee overall control, high precision, good stability.
Positioning precision: ±0.02m
Repeated positioning accuracy: ±0.02mm

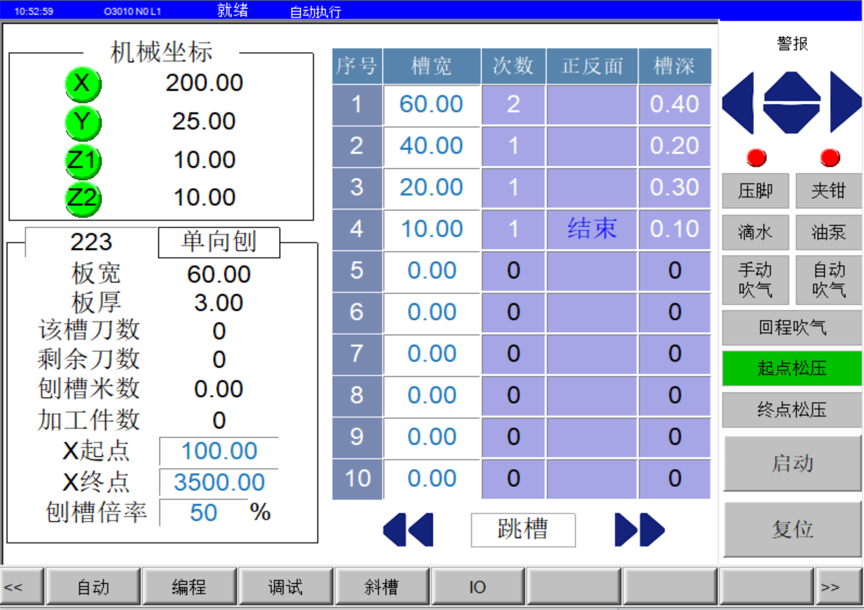

Control System
Taiwan SYNTEC
System Features
2D graphics programming
- Generate grooving path while drawing, easy to use
- No need to program the drawing
