Description
ITMES/MODEL | THK | WID | ANGLE | MAX. OPEN | POWER | NW/GW | PACKAGE SIZE |
(MM) | (MM) | (°) | (MM) | (KW) | （KGS） | （MM） | |
2×1500 | 2 | 1500 | 00~120 | 100 | 4 | 1750/2000 | 2370x1200x1800 |
3×1320 | 3 | 1320 | 0~120 | 100 | 4 | 1800/2000 | 2270x1200x1800 |
3×2000 | 3 | 2000 | 0~120 | 100 | 4 | 2700/3000 | 2880x1500x1800 |
3×2500 | 3 | 2500 | 0~120 | 100 | 4 | 3100/3400 | 3380x1500x1700 |
3×3000 | 3 | 3200 | 0~120 | 100 | 5.5 | 3600/3900 | 4100x1500x1800 |
4×1320 | 4 | 1320 | 0~120 | 100 | 4 | 2000/2200 | 2270x1200x1800 |
4×1500 | 4 | 1500 | 0~120 | 100 | 4 | 2050/2250 | 2470x1200x1800 |
4×2000 | 4 | 2000 | 0~120 | 100 | 4 | 2900/3100 | 2880x1500x1800 |
4×2500 | 4 | 2500 | 0~120 | 100 | 4 | 3300/3600 | 3380x1500x1700 |
4×3200 | 4 | 3200 | 0~120 | 100 | 5.5 | 3800/4100 | 4100x1500x1800 |
5×2000 | 5 | 2000 | 0~120 | 100 | 5.5 | 3100/3400 | 2880x1500x1800 |
5×3200 | 5 | 3200 | 0~120 | 100 | 7.5 | 4800/5100 | 4300x1500x1800 |
3×4000 | 3 | 4000 | 0~120 | 100 | 7.5 | 4600/4900 | 5100x1500x1800 |

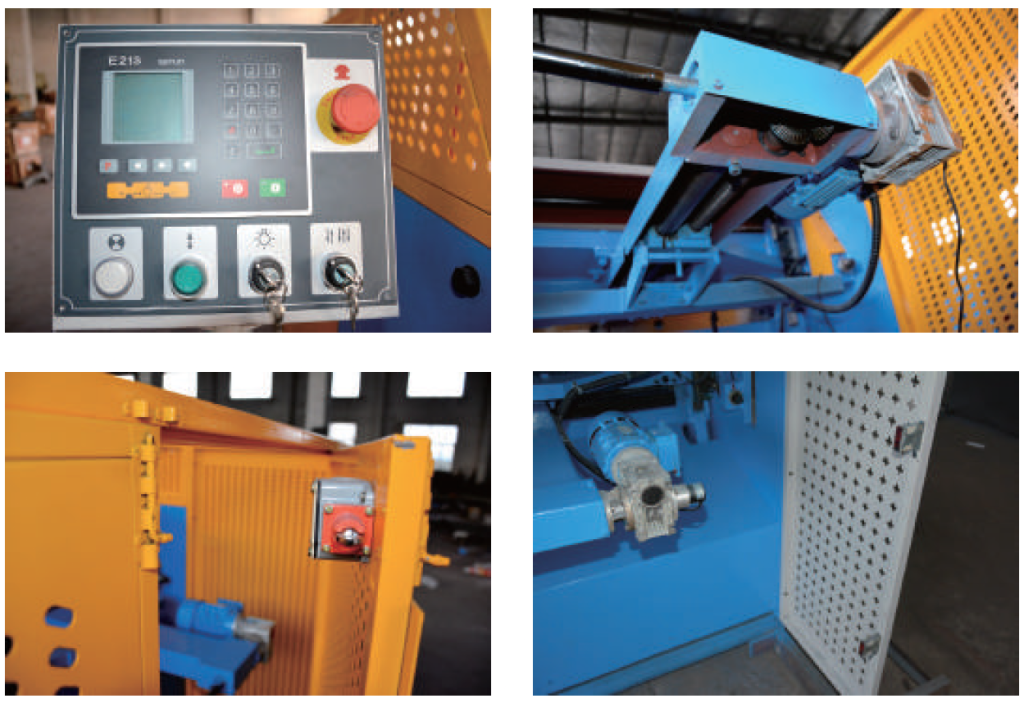

E21 NC_ESTUN (STANDARD) | Manual Angle Setting; Back-Gauge Automatic Move (600mm stroke) | ||||||

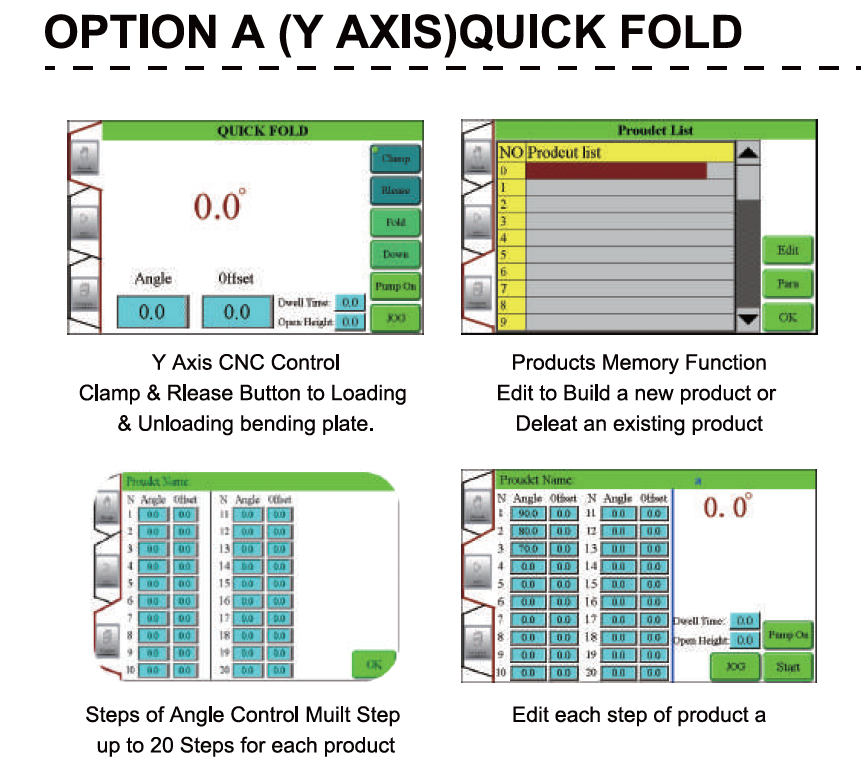

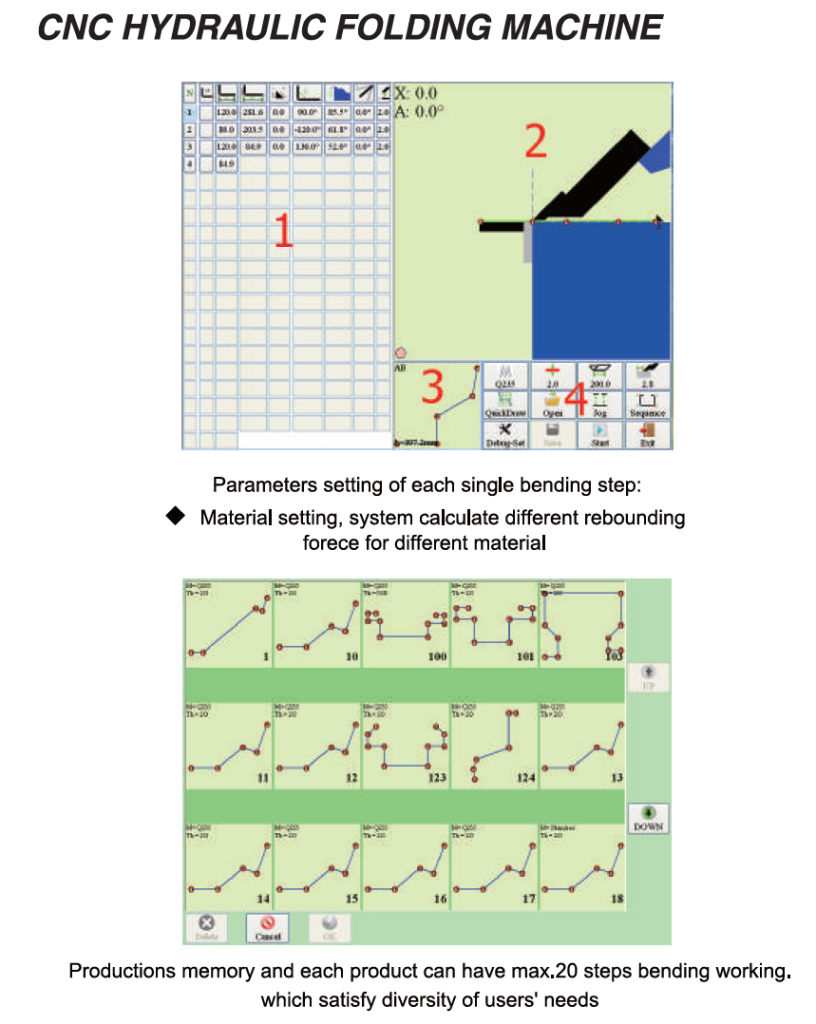

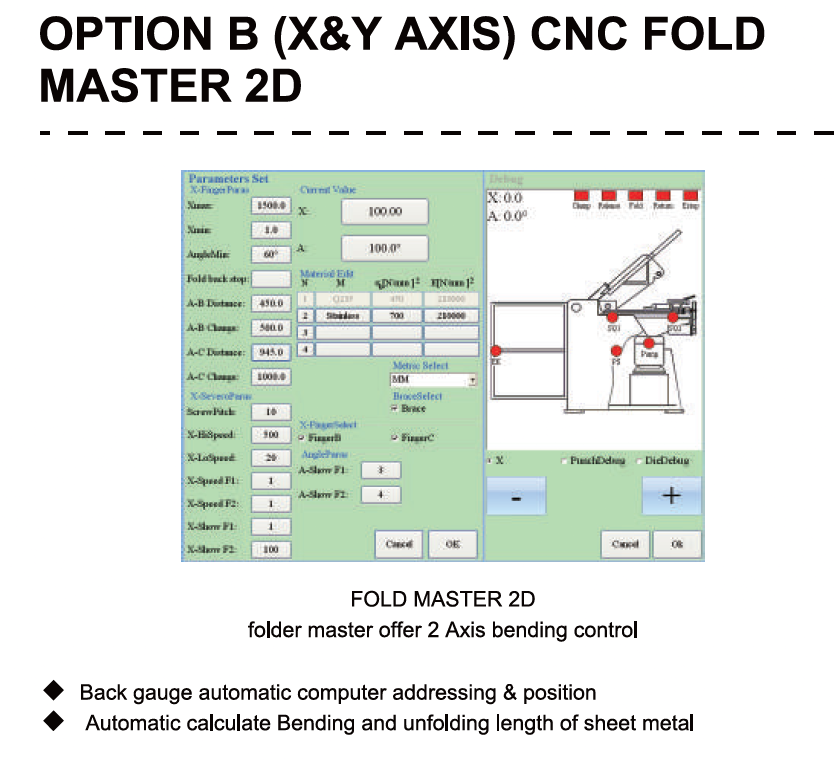

(X&Y AXIS) CNC FOLD MASTER 2D (OPTIONAL) | CNC Y Axis: Automatic Computer Number Angle Control; CNC X Axis: Computer Number Back Gauge Control | ||||||
