Description

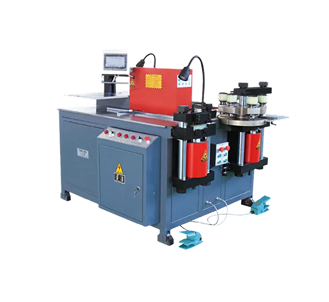

Three-in-One PLC Copper Busbar Processing Machine
The Three-in-One PLC Copper Busbar Processing Machine integrates punching, shearing, and bending into a single unit, offering unmatched efficiency and versatility. Key functions include:

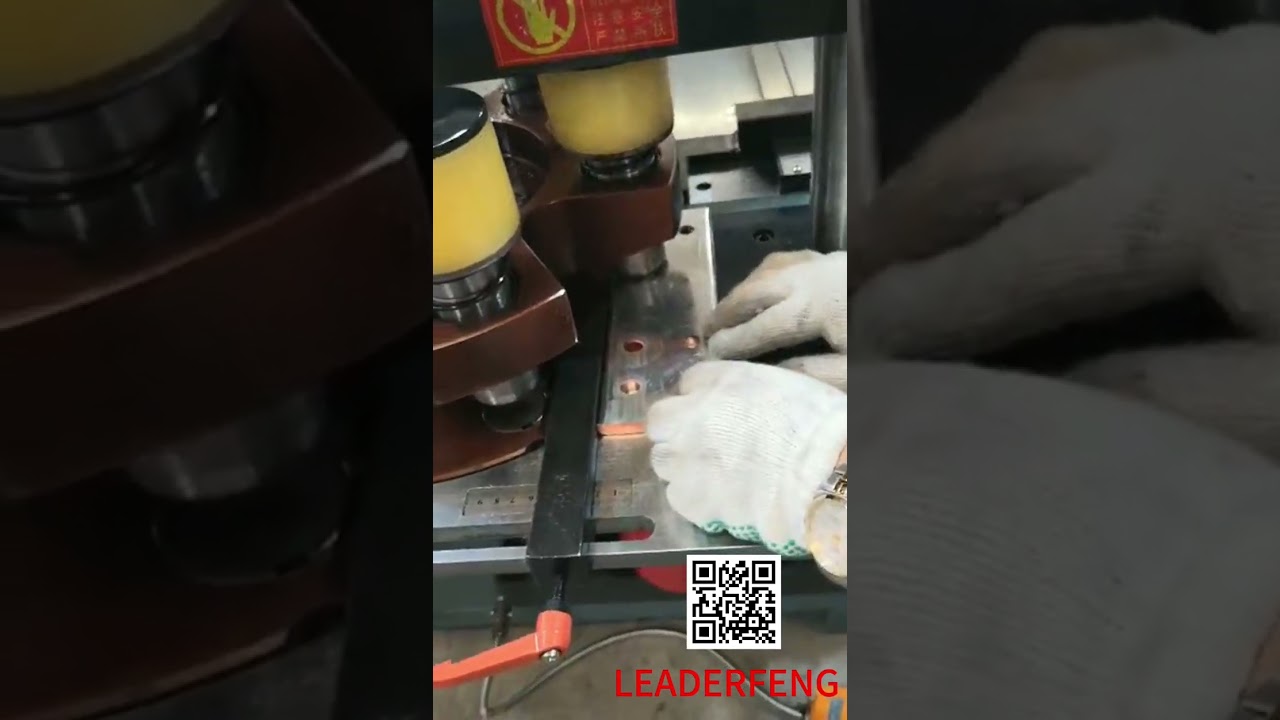

Punching: Round holes, long holes, square holes, and copper rod punching.
Cutting: Plane cutting, edge cutting, and R-angle cutting.

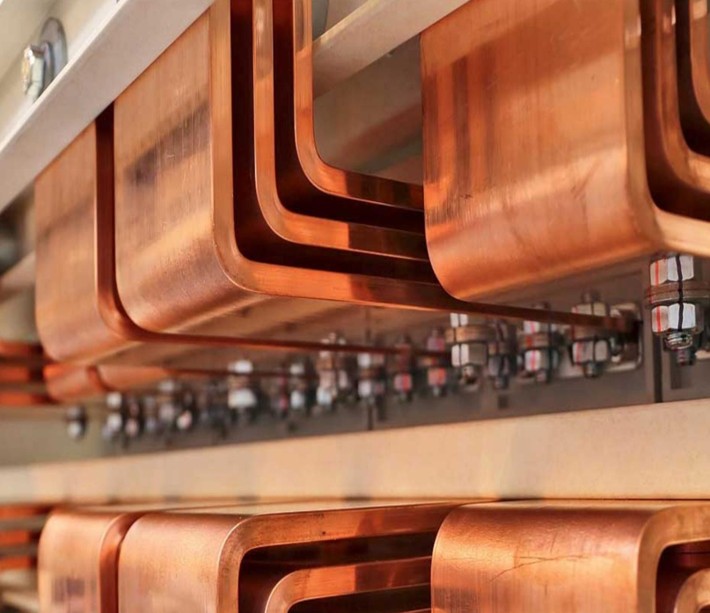

Bending: L-shaped, U-shaped, Z-shaped bending, twisting, flattening, cable pressing, copper rod pressing, and folding—all without indentation.
Why Choose PLC Busbar Machines?
PLC Busbar Machines are indispensable tools for modern manufacturing facilities. Their precision, automation, and versatility make them ideal for producing high-quality busbars efficiently and cost-effectively. By improving productivity and reducing labor costs, these machines help manufacturers stay competitive in their industries.
Transform Your Busbar Fabrication Process
With PLC Busbar Machines, you can achieve faster production, higher precision, and reduced costs. Whether you’re working in power distribution, control panels, or switchgear, these machines are the ultimate solution for all your busbar fabrication needs.
Busbar Machine Model | LDFMX-303ESK | LDFMX-503ESK | LDFMX-803ESK | |||||
Punching | Max.Puncing Force (KN) | 300 | 600 | 800 | ||||
Punching Diameter Range (MM) | Ø4.3-Ø30 | Ø4.3-Ø36 | Ø4.3-Ø36 | |||||
Max. Thickness (MM) | 12 | 16 | 20 | |||||
Max. Width (MM) | 160 | 260 | 300 | |||||
Max.Shearing Thickness(KN) | 12 | 16 | 20 | |||||
Shearing/ | Max. Shearing Width (MM) | 160 | 260 | 300 | ||||
Cutting | ||||||||
Max. Cutting Force (KN) | 500 | 800 | 800 | |||||
Vertical Bending | Max. Thickness (MM) | 10 | 10 | 10 | ||||
Max. Width (MM) | 100 | 100 | 100 | |||||
Horizontal Bending | Max. Thickness (MM) | 12 | 16 | 20 | ||||
Max. Width (MM) | 160 | 260 | 300 | |||||
Max. Bending Force (KN) | 300 | 600 | 800 | |||||
Twisting Bending | Max. Thickness (MM) | 12 | 16 | 20 | ||||
Max. Width (MM) | 160 | 260 | 300 | |||||
Out Dimension | Out Dimension | 1890*1350*1400 | 1925*1560*1490mm | 2080*1750*1570mm | ||||
Power | Power | 3 x 4kw | 3 x 5.5kw | 3 x 7.5kw | ||||
CNC Precision | Bending Precision | ±1° | ±1° | ±1° | ||||
Repeat Bending Precision | ±0.3° | ±0.3° | ±0.3° | |||||
