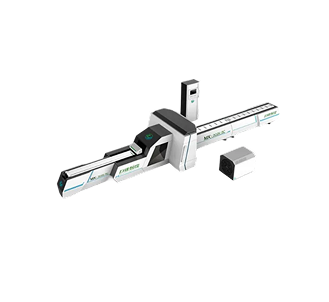

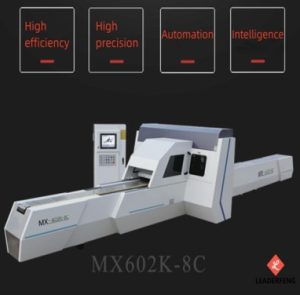

Busbar Punching Cutting Machine (BECKHOFF system)

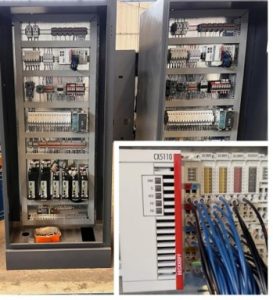

The device brain, imported from Germany with BECKHOFF system, ensures stable machine operation.
Equipment features: exquisite craftsmanship, intelligent operation, sturdy and durable.

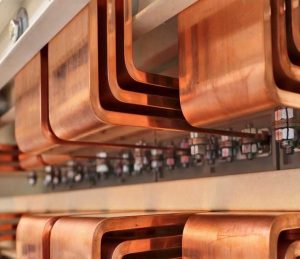

Equipment function: Cutting, punching, chamfering, embossing (various circular holes, square holes, irregular holes, and groove shapes) and other processing for copper aluminum busbars.
Main features
- This machine belongs to the specialized processing equipment for copper aluminum busbars in the high and low voltage complete industry of power It has the characteristics of high efficiency, low energy consumption, high processing accuracy, convenient operation, and beautiful and novel appearance (patent number: ZL201430448531.8).
- This equipment has unique processing principles and methods. The hydraulic cylinder moving device is a design patent (patent number: X), with a daily processing capacity of A few tons or more is the preferred ideal equipment for the busbar processing industry.
- For longer copper and aluminum bars, one-time clamping can be achieved without manual intervention during the processing. By automatically repeating the switching of clamps, the punching and shearing of the workpiece can be
- The mold library can choose from a seven punch, one shear, one embossing or an eight punch, one shear inline mold library.
- The cutting tool is a single blade counter cutting tool (patent number: 0), and there is no waste
generated after cutting.
- The whole machine is composed of a feeding table, a mold warehouse, a conveying device, a servo control unit, and an auxiliary design system, with stable and reliable performance.
- The human-machine interface is simple to operate, equipped with a power building busbar processing machine auxiliary design system (certificate number: Software Registration No. 0846802), which reflects the real-time operation status of the program.
- The mold frame is made of ductile iron material, which has good wear resistance and ensures the concentricity of the punching upper and lower molds during long-term use.
Technical Parameter
Model | MX602K-8C | |
Nominal pressure | 600KN | |
Maximum machining size Mini processing range | 16*200mm 3*15mm | |
Punching processing range | Φ4.3～35mm | |
Maximum number of molds that can be installed | 8 punch 1 cutt OR 7 punch 1 cutt 1 embos | |
Parameter comparison | Maximum travel of X-axis | 2000mm |
X-axis positioning speed | 75m/min | |
Maximum travel of Y-axis | 960mm | |
Y-axis positioning speed | 35m/min | |
Maximum travel of Z-axis | 310mm | |
Z-axis positioning speed | 35m/min | |
Punching Accuracy | ±0.2mm | |
Positioning | 0. 10/500mm | |
blow speed | 120-150 times/minute | |
Number of CNC axes | 6 axes | |
Machine dimensions (length x width x height) | 10500mmX2900mmX1800mm | |
