NC.40ZB-1200
NC.40ZB-1200 / German Beckhoff
High-Efficiency, High-Precision Bending for Copper and Aluminum Bars

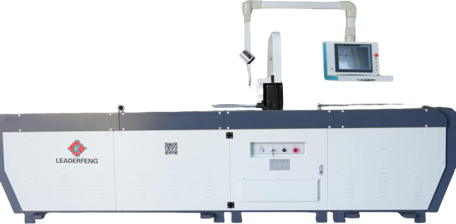

The NC.40ZB-1200 Servo CNC Busbar Bending Machine is a state-of-the-art, fully automated processing equipment designed for precision bending of copper and aluminum bars. Powered by hydraulic pressure and controlled by advanced CNC technology, this machine is equipped with our self-developed CAD/CAM software system, offering unparalleled automation and precision in the industry. It is the ideal solution for busbar processing in high and low voltage switchgear, box-type substations, transformers, bus ducts, and more.
Our CNC busbar bending machine is a busbar processing machine for efficient bending of copper busbars or aluminum busbars. Different from conventional multifunctional busbar machines, this busbar machine has only a single bending function and integrates the German Beckhoff system, making the bending efficiency more efficient and automated.

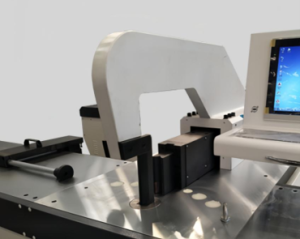

“Closed bending” structure
Simple structure Reasonable force
High mechanical strength

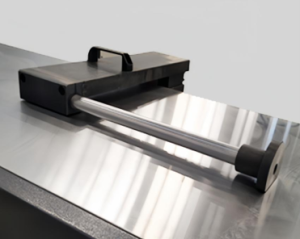

CNC stopper
Modular design, smooth operation.
Automatic stop function greatly reduces working energy consumption

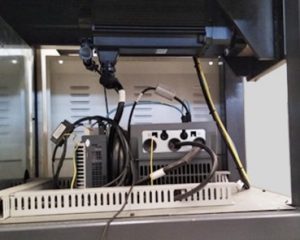

Servo Motor
Good stability Stable transmission
High positioning accuracy
Accuracy is not affected by temperature
Parameter：
HC interactive screen
Human-machine interface, bending program The interface is clear and the operation is simple.
Used in conjunction with CNC punch cutt machine
Through CNC programming software, the machine and software do not interfere with each other, making maintenance easy.
Item | NC.40ZB-1200 |
Nominal Pressure | 400kns |
Length of material | 1200mm |
Maximum processing size of flat bending | 16X200mm |
Vertical bending maximum processing size | 12X120mm |
Spindle travel | 200mm |
Main motor power | 7.5kw |
Main stop accuracy | +- 0.15 |
Bending accuracy | +- 0.3 |
Equipment size (mm) | 3500X1450X1850 |
Equipment weight | 3100kg |
